ABB Low voltage motors are with ABB
quality and support. These motors have the
features appreciated by volume customers
and serial OEMs. Motors achieve IE2 and IE3
efficiency.

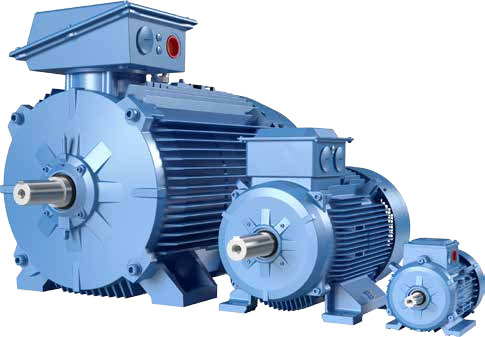

ABB Low Voltage Motors
General information
‣ Standards
ABB motors are of the totally enclosed, three phase squirrel cage type, built to comply with international IEC and EN standards. Motors conforming to other national and international specifications are also available on request.
All production units are certified to ISO 9001 international quality standard as well ISO 14000 environmental standard and conform to all applicable EU Directives.
‣ Brief

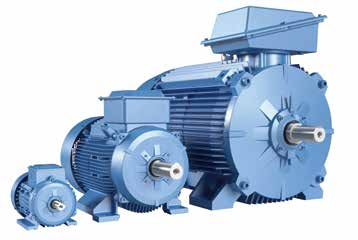

M2BAX – Low voltage general performance motors are ABB
high efficiency products. This series of motors are designed
for both the Chinese market and export. Product development is on ABB strong R&D platform. The design is in line with international IEC standards and China local GB standards. The efficiency level reaches IE3 and IE2, equivalent to Grade 2 and Grade 3 (GB18613-2012).

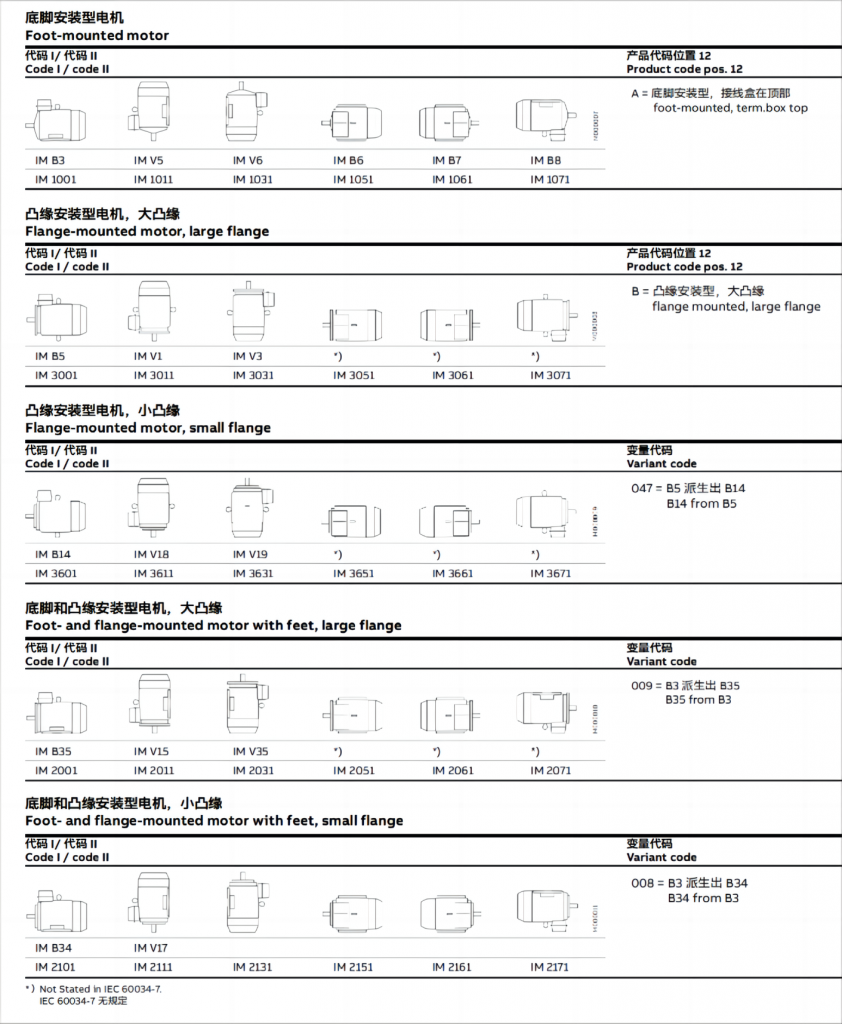

General information – Mounting arrangements
M2BAX is specially designed for OEM customers, mainly integrated with fans, pumps and gear boxes. Main applications include Water & Waste water treatment, HVAC, Food & Beverage, Textile, Power, Pulp & Paper, Metal and others industries. The high quality of M2BAX and the excellent service of ABB continuously make value for the customers. Standard motors are on stock, which can shorten lead time and ensure a fast delivery. Higher product flexibilities lead to meet the ever-changing need from our customers.
General information – Degrees of protection: IP code/IK code
Classification of degrees of protection provided by enclosures of rotating machines refers to:
• Standard IEC 60034-5 or EN 60529 for IP code
• Standard EN 50102 for IK code
‣ IP protection
Protection of persons against getting in contact with (or approaching) live parts and against contact with moving parts inside the enclosure. Also protection of the machine against ingress of solid foreign objects. Protection of machines against the harmful effects due to the ingress of water.
‣ IK code
Classification of degrees of protection provided by enclosure for motors against external mechanical impacts.
Content
ABB Motors and Generators
‣ Ordering information
‣ Variable speed drives
‣ Variant codes
‣ Rating plates
‣ Technical data IE2
‣ Electrical design
‣ Technical data IE3
‣ Mechanical design
‣ Dimension drawings

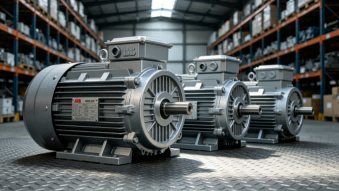

General performance motors in brief
‣ Frame size 71-132
‣ Frame size 160-250
‣ Frame size 280-355
